Compact Industrial Hybrid UV LED printer for production
GZF20KM Pro is a compact hybrid printer designed on heavy duty industrial platform for reliable production. It is built according to the latest industry standards, including requirements for Industry 4.0 concept.
Its features include:
- high quality conveyer belt design
- linear motor with metal encoder
- up to 8 colors for extreme color gamut or specific spot colors
- internally developped industrial grade ink system for production stability
- configurable and accessible print carriage design
- smooth and silent motion system
- real-time control of media movement
- easy maintenance without accessing machine internals
- compact energy footprint
- double-sided printing, continuous operation, simplified maintenance and stable production.
High-quality, high-power servo drives ensure stable, fast, reliable, and quiet operation. The linear motor design,
standard in this printer model, is oversized to provide exceptional durability and long-term stability.
Flexible media transport system is easily accessible and has integrated airshafts on both sides as well as optional dual roll holders.
Water-cooled, high-power LED units with an integrated anti-static system ensure continuos operation without issues such as incomplete or irregular curing.
The latest generation of safety systems allows print jobs to continue once safety conditions are restored,
eliminating the need to restart print jobs.

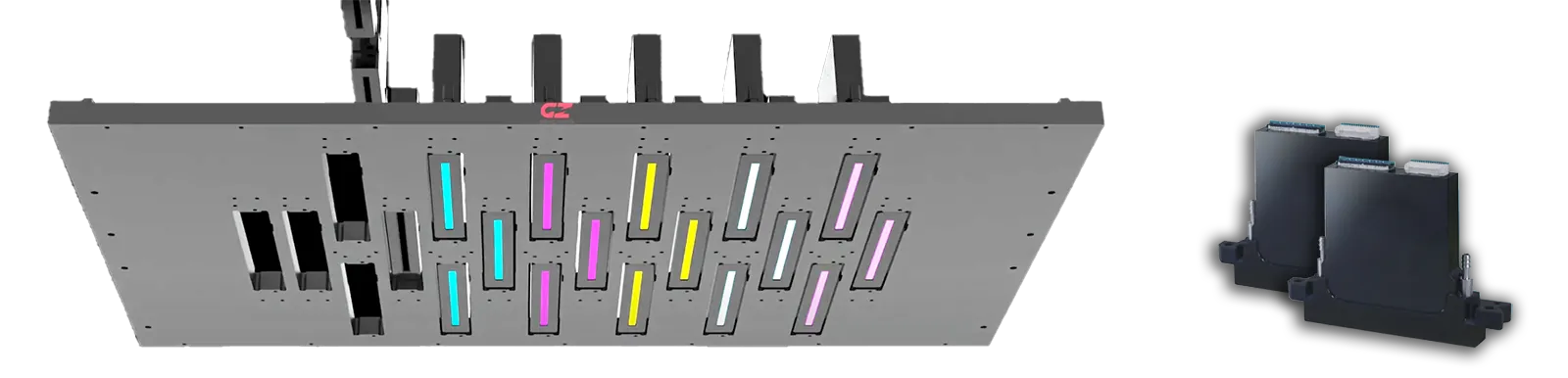

The printer supports up to 32 Konica Minolta KM1024a printheads in up to 4 rows on the head carriage.
Depending on quality requirements, configurations such as CMYK, CMYKW, CMYKlclmW, CMYKOGVW are supported. Fluorescent color options, such as CMYKWfYfM, are also available for applications that may benefit from them.
In-house development of optimized waveforms ensures that every ink type and ink color performs at its peak.
In the right configuration, the printer supports Day-and-Night printing modes as well as white-over and white-under modes.
The Konica Minolta KM1024a industrial printhead is our first choice due to excellent precision, stability, fluid control and proven industrial grade durability. Ink system has been specifically designed in-house to provide maximal stability even for largest print head arrays and most complex jobs.
The printer is also available, equipped with Ricoh G6 printheads if required.
Lastly, the simplified maintenance procedures without even opening covers, and straightforward and easy-to-learn production process make this printer easy to integrate into your workflow with minimal training required.
We believe in long service life of equipment, which is why we designed this unit to be upgradable and re-configurable, in case business environment parameters change. Our target is to support Industry 4.0 initiative, which is why we already set some infrastructure in this model.
| Model | GZF20KM Pro |
|---|---|
| Print Head | up to 32 Konica Minolta KM 1024a Print Heads |
| Curing system | Dual water cooled hi power LED lamps |
| Ink | GreenGuard Gold Certified UV curable ink |
| Available colors | CMYK, W, lc, lm, Or, Gr, Vio, FluoY, FluoM, Varnish |
| Head configurations | 2xCMYK, 4xCMYK, 4xCMYK 2xW, 4xCMYKlclm 2xW, 3xCMYKFyFm 1xW , 2xCMYKOrGrVio, … |
| Ink supply system | High-end internally developed negative pressure system with White ink recirculation, positive pressure for ink purge |
| Ink tank | 3L |
| Media thickness | Max 40mm |
| Media Type | Cardboard, Banner, Textile, Vinyl, Paper, PP films, PU films, Blueback paper … |
| Printing width | Max 2005 mm |
| Printing speed | 2xCMYK —— 4xCMYK |
| Max 480x1080dpi | 72 m2/h — 140 m2/h |
| Production 480x1080dpi | 42 m2/h — 82 m2/h |
| Quality 480x1080dpi | 32 m2/h — 63 m2/h |
| Hi-resolution 480x1080dpi | 21 m2/h — 38 m2/h |
| Data interface | USB 3.0 external, Fiber Optics internal |
| Working environment | Temp 20C~30C, Humidity 40% ~ 70% |
| Software | Onyx RipCeneter, GZ printer manager, optional FlexiPrintUV, PrintFactory, Caldera… |
| Power | Single phase, 50/60Hz, AC 220V, 20A Printer, 16A UV controller |
| Installed Size/Package Size | LxWxH(mm): 5100x1600x2083 Printer 5300x1950x2340 |
Feel free to reach us for more details.
*posted data could slightly differ due to measurement methodology and change due to constant development and process improvement
