H3220GN is a classic unit, perfect for any applications on board-type materials.
This classic unit is the result of 20 years of experience in engineering and field feedback.
Proven Ricoh G6 technology is still providing the highest reproduction quality levels while keeping legendary stability levels. With its 3.2m by 2m printable area, the unit fits the most versatile product requirements.
Wide ink compatibility ensures that almost every application can be produced on this unit.
Thanks to that fact it is possible to tailor printer setup for even most demanding applications.
The advanced 6-zone vacuum system and head carriage run on a top-of-the-line linear rail assembly -
driven by a powerful linear motor.
Upgraded setup specifications of H3220GN are putting this unit at the top of its market segment.
Extreme acceleration minimizes time lost in head carriage movement, while stable and precise motion
controlled by a metal encoder and feedback from servo drives provides the framework for the highest image reproduction quality and resolution.

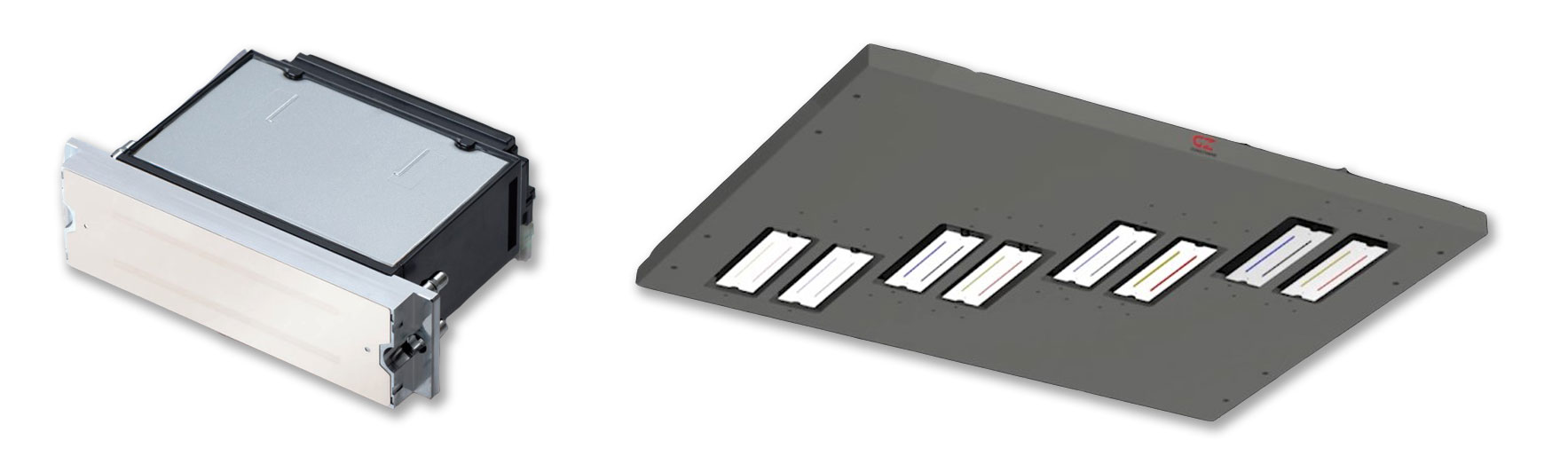

Ricoh G6 print heads are famous for their versatility either in light tones or solid colors.
The highest quality construction materials and fine detail finishing ensure long life and optimal exploitation of the printer.
Available configurations range from 4 to 18 Ricoh G6 print heads in various configuration.
Productivity of the unit depends on the selected configuration and quality requirements. Conservative measurements put the mark at about 70 m2/h for 4 rows of CMYK and about 90 m2/h for 6 rows in quality production, while draft speeds are easily twice those numbers.
Please, feel free to contact our team if you want more information. We are sure that you will be positively surprised with this unit.
| Model | H3220GN |
|---|---|
| Print Head | 4-18 Ricoh G6 |
| Resolution | 726 x 600 / 900 / 1200 dpi |
| Curing system | Dual water cooled hi power LED lamps |
| Ink | Gongzheng Greenguard Gold certified UV curable ink |
| Color configurations | 1xW+1xCMYK+1xV, 2xCMYK+2xW, 4xCMYK+2xW, 6xCMYK+2xW, … |
| Ink supply system | Negative pressure system with White ink recirculation |
| Ink tank | 2.5L |
| Media thickness | Max 100mm |
| Media Type | Rigid media: PVC boards, Foam boards, Corrugated boards, Polycarbonate boards, Acryl boards, Metal sheets, … |
| Printing Table Size | 3260 x 3200 mm |
| Printing speed | 4xCMYK —— 6xCMYK |
| Max | 150 m2/h — 190 m2/h |
| Production | 67 m2/h — 84 m2/h |
| Max Quality | 50 m2/h — 65 m2/h |
| Data interface | USB 3.0 external, Fiber Optics internal |
| Working environment | Temp 20C~30C, Humidity 35% ~ 65% |
| Software | Onyx Rip Center, GZ printer control interface |
| Power | Single phase, 50/60Hz, AC 220V +/- 10%, 23A (Printer + UV Chiller), 14A (Vacuum System) |
| Installed Size | LxWxH(mm): 5400x3030x1500 (printer) 650x340x340 Vacuum blower |
| Weight | 1912 kg |
*posted data could slightly differ due to measurement methodology and change due to constant development and process improvement
